PRODUCT

    Vacuum Grippers

    特性及優勢

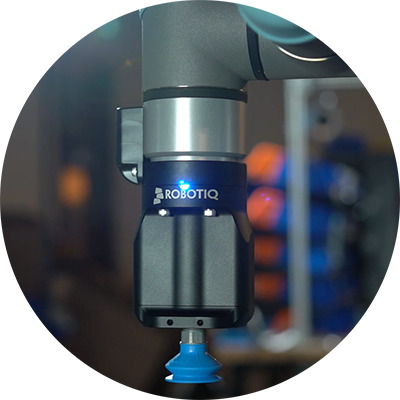

    AIR PICK

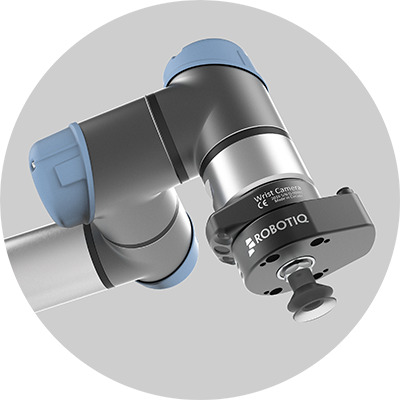

    E PICK

    •  30分鐘內完成安裝及上線
    •  強大的真空流
    •  低噪音
    •  專為協作型機器手的複合式設計
    •  30分鐘內完成安裝及上線
    •  無需額外的空壓機
    •  適用於非多孔材質
    •  使用簡易




    Unit
    EPick
    AirPick
    Energy source
    -
    Electricity
    Compressed air
    Gripper mass
    g
    710
    481
    Maximum Vacuum level
    %
    80
    85
    Maximum Vacuum flow
    L/min
    12
    52,7
    Air consumption
    L/min
    -
    135,9
    Minimum Feed pressure
    bar
    -
    3
    Miximum Feed pressure
    bar
    -
    7
    Connection, compressed air
    Mm OD Tube
    -
    8
    Operating ambient temperature
    °C
    5 to 40
    0 to 50
    Humidity
    %RH
    non-condensing
    20-80
    20-80
