PRODUCT

    SlideKit

    SlideKit




    Features

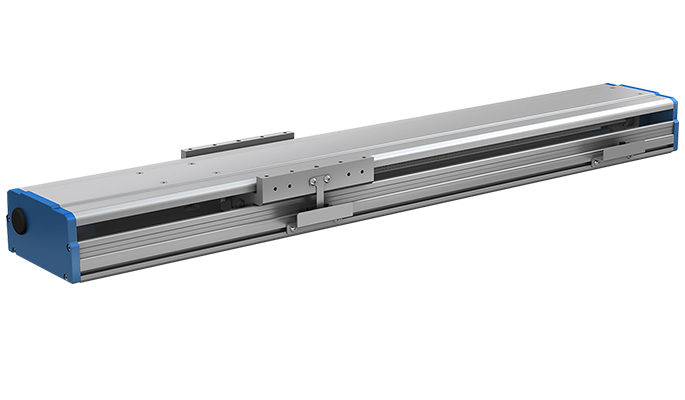

    •  UR+ certified horizontal positioning axis

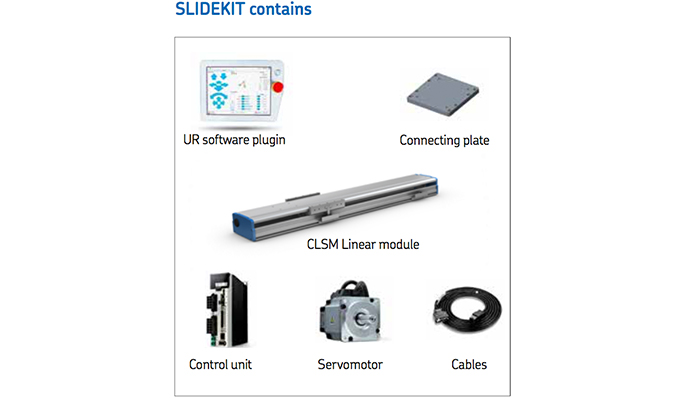

    •  Ready to use complete system solution
    •  Software plugin (UR Caps) to UR control system included
    •  High level of positioning precision and repeatability
    •  Depth compensation



    Benefits

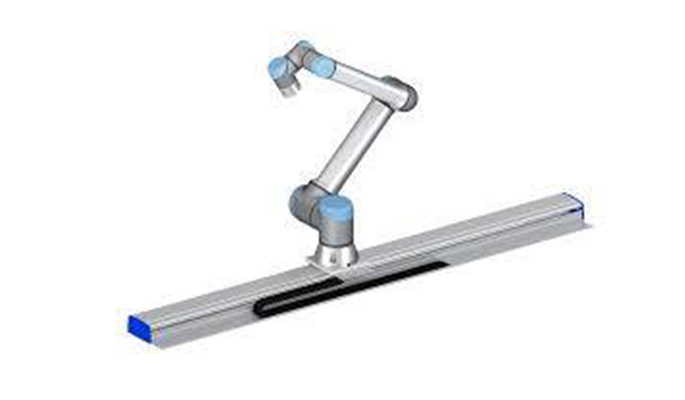

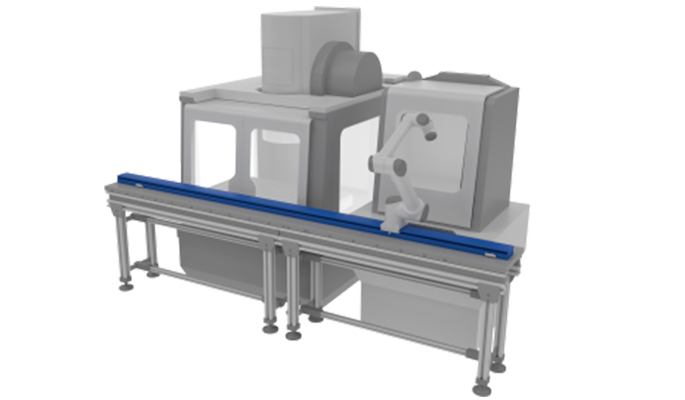

    •  Operating range extension of a Universal Robot
    •  No hardware/software development required
    •  Direct positioning access within the UR control environment
    •  Fast positioning to increase productivity and save cost





    TECHNICALSPECIFICATIONS


    Designation
    LIFTKIT-UR-601
    Max Stroke (mm)
    500 to 1800 mm
    Operating Temperature
    10 to +50ºC
    Max. Linear Speed No Load (mm/s)
    1200
    Screw Type / Diameter Lead (mm)
    Ball Screws; 20x5 20x10 20x20
    Max. Speed no load (mm/s)
    80 mm/s
    Duty Cycle (%)
    100
