PRODUCT

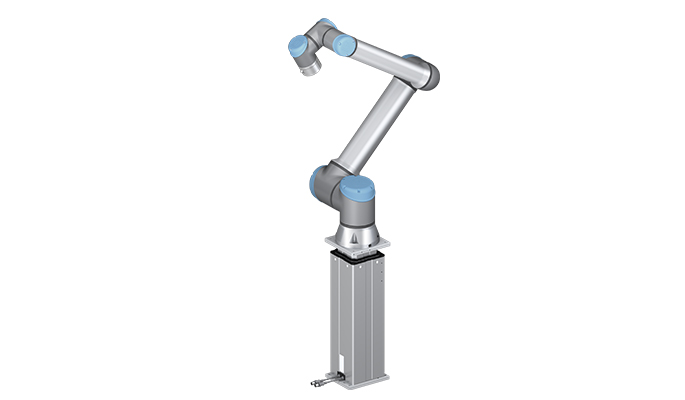

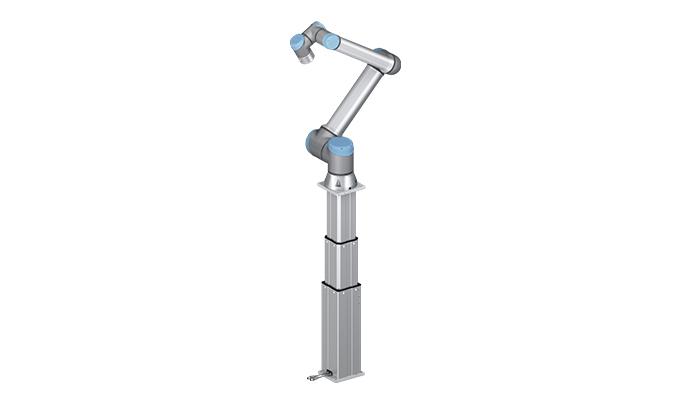

    LiftKit

    LiftKit




    Features


    •  UR+ certified vertical positioning axis

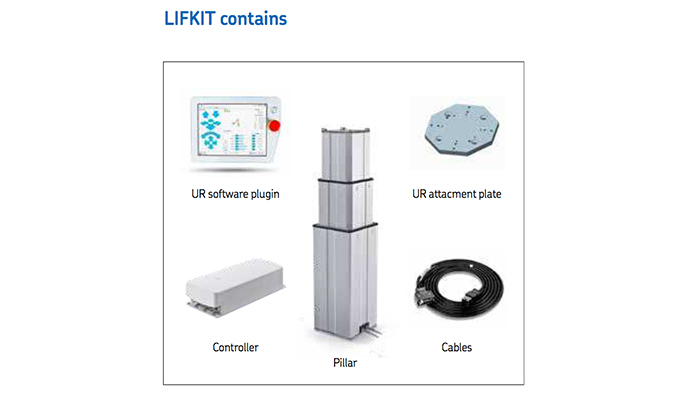

    •  Ready to use complete system solution
    •  Software plugin (UR Caps) to UR control system included
    •  Robust pillar design for industrial use
    •  Depth compensation
    •  Customizable fingertips



    Benefits


    •  Operating range extension of a Universal Robot to increase productivity and save costs
    •  No hardware/software development required
    •  Software plugin (UR Caps) to UR control system included
    •  Direct positioning access within the UR control environment
    •  Vibration free motion and virtually maintenance free





    TECHNICALSPECIFICATIONS


    Designation
    LIFTKIT-UR-601
    Push Load
    1500 N
    Pull Load
    0
    Max Stroke (mm)
    500 to 900 mm
    Operating Temperature
    10 to +40ºC
    Type of Protection
    IP 40
    Max. Speed no load (mm/s)
    80 mm/s
    Duty Cycle (%)
    10
