PRODUCT

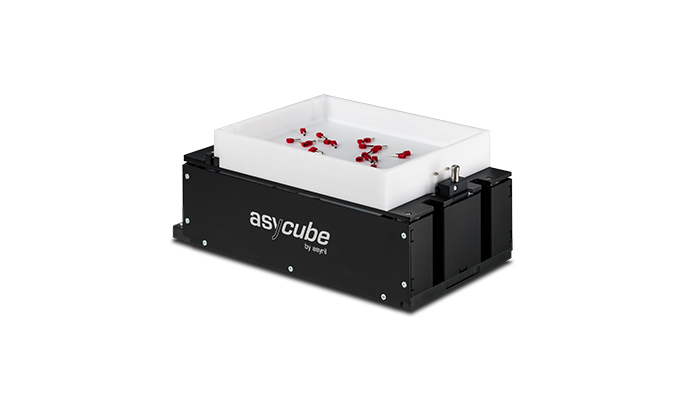

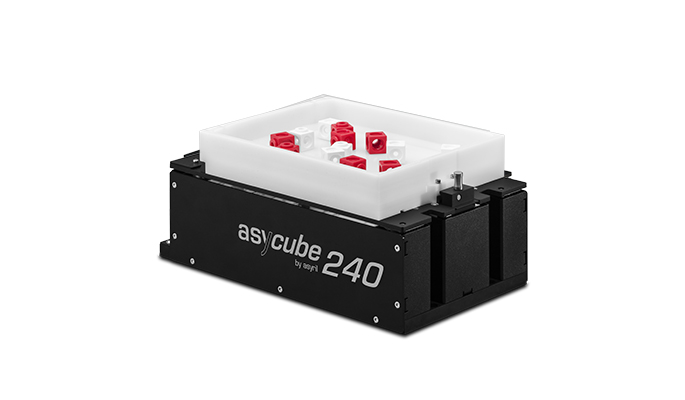

    Asycube_240

    KEY FEATURES




    • Compatible with all part geometries
    • Extremely gentle part handling due to Asyril’s innovative 3-axis vibration technology
    • Advanced reliability and durability
    • Avoid backfeeding of vibration into surrounding machines
    • Precise part detection
    • Systematic part orientation
    • Minimum production changeover times
    • Easy configuration
    • Various hopper sizes





    TECHNICALSPECIFICATIONS


    GENERAL INFORMATION

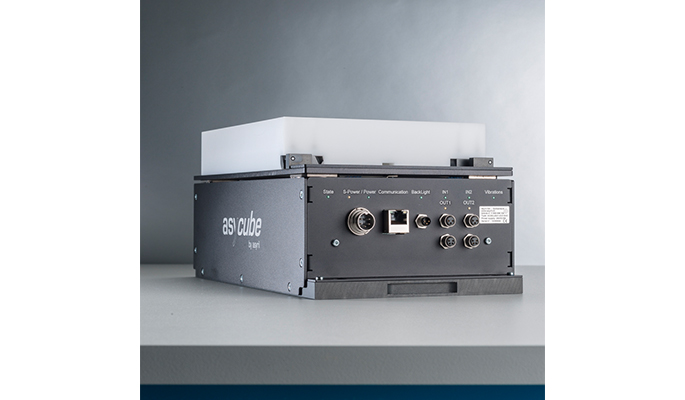

    CommunicationOptional via Gateway
    Ethernet (TCP/IP), Modbus TCPEtherNet/IP, EtherCAT, PROFIBUS, SERCOS
    Power supply
    24 V / 8 A
    Backlight synchronization input
    OPTIONS
    Visual part detection system
    Asyril SmartSight

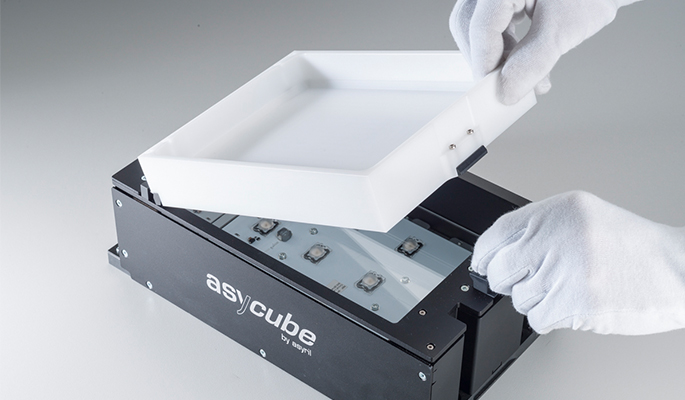

    Integrated LED backlight
    red / green / blue / white / infrared
    Vibration plate
    flat / holes / grooves / nests /pockets / various materials
    Purge platform

    Calibration plate

    Connection cables
    power / communication / backlight
    Various hopper sizes
    2 liters ,3 liters
    Custom platform material
    on demand (e.g. medical)
    DIMENSIONS
    Description
    Reference
    Dimensions
    Typical part size

    5 -40mm
    - 0.2 - 1.5inches
    Vibration platform
    A
    150mm
    -5.9~inches
    Vibration platform
    B
    195mm
    -7.6inches
    Footprint
    C
    171mm
    -6.7inches
    Footprint
    D
    300mm
    -11.8inches
    Footprint
    D’
    55mm
    - 2.2inches
    Maximum height
    E
    132mm
    -5.2inches
    Pick height
    F
    105mm
    -4.1inches
