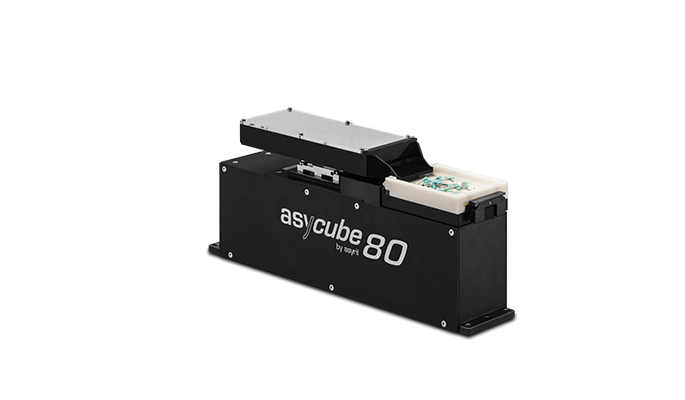

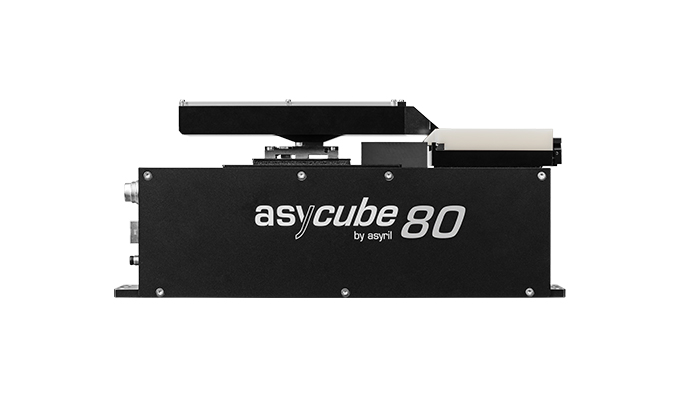

    Asycube_80

    KEY FEATURES




    • Compatible with all part geometries
    • Extremely gentle part handling due to Asyril’s innovative 3-axis vibration technology
    • Advanced reliability and durability
    • Avoid backfeeding of vibration into surrounding machines
    • Precise part detection
    • Systematic part orientation
    • Minimum production changeover times
    • Easy configuration
    • Various hopper sizes





    TECHNICALSPECIFICATIONS


    GENERAL INFORMATION
    CommunicationOptional via Gateway
    Ethernet (TCP/IP), Modbus TCPEtherNet/IP, EtherCAT, PROFIBUS, SERCOS
    Power supply
    24 V / 6 A
    Backlight synchronization input
    OPTIONS
    Visual part detection system
    Asyril SmartSight
    Integrated LED backlight
    red / green / blue / white / infrared

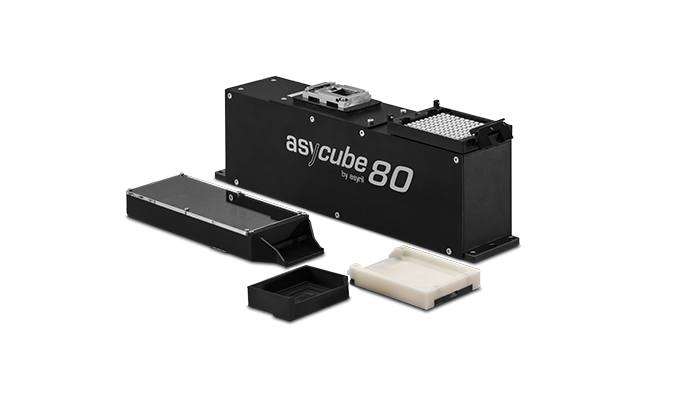

    Vibration plate
    flat / holes / grooves / nests /pockets / various materials
    Purge platform

    Calibration plate

    Connection cables
    power / communication / backlight
    Various hopper sizes
    160 cm3
    Custom platform material
    on demand (e.g. medical)
    DIMENSIONS
    Description
    Reference
    Dimensions
    Typical part size

    3 -15mm
    -0.1-0.4inches
    Vibration platform
    A
    52mm
    -2.1~inches
    Vibration platform
    B
    65mm
    -2.6inches
    Footprint
    C
    65mm
    ~ 2.6inches
    Footprint
    D
    320mm
    -12.6inches
    Footprint
    D’
    50mm
    -2.0inches
    Maximum height
    E
    140mm
    -5.5inches
    Pick height
    F
    110mm
    -4.4inches
