PRODUCT

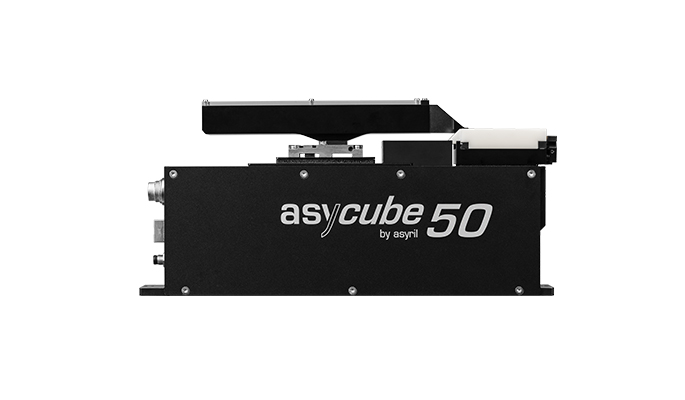

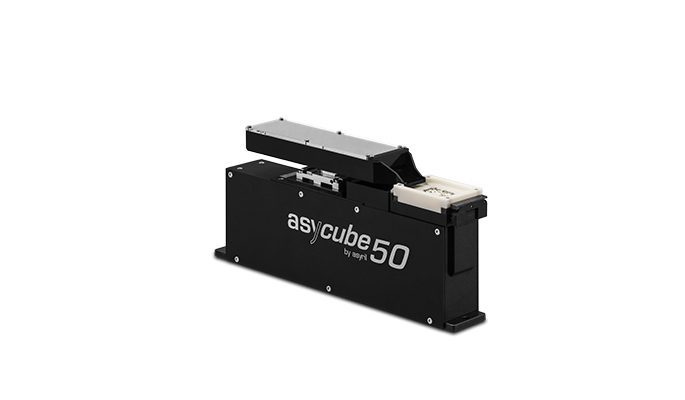

    Asycube_50

    KEY FEATURES




    • Compatible with all part geometries
    • Extremely gentle part handling due to Asyril’s innovative 3-axis vibration technology
    • Advanced reliability and durability
    • Avoid backfeeding of vibration into surrounding machines
    • Precise part detection
    • Systematic part orientation
    • Minimum production changeover times
    • Easy configuration
    • Various hopper sizes





    TECHNICALSPECIFICATIONS


    GENERAL INFORMATION
    CommunicationOptional via Gateway
    Ethernet (TCP/IP), Modbus TCP EtherNet/IP, EtherCAT, PROFIBUS, SERCOS
    Power supply
    24 V / 4 A
    Backlight synchronization input

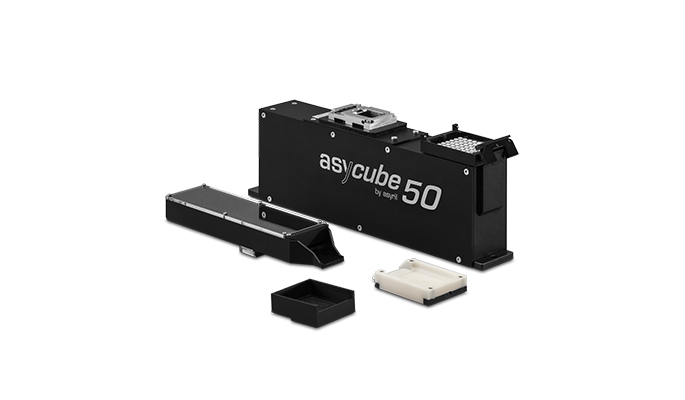

    OPTIONS
    Visual part detection system
    Asyril SmartSight
    Integrated LED backlight
    red / green / blue / white / infrared
    Vibration plate
    flat / holes / grooves / nests /pockets / various materials
    Purge platform

    Calibration plate

    Connection cables
    power / communication / backlight
    Various hopper sizes
    10 cm3 110 cm3
    Custom platform material
    on demand (e.g. medical)
    DIMENSIONS
    Description
    Reference
    Dimensions
    Typical part size

    0.1 - 5mm
    ~ 0.004 - 0.2~inches
    Vibration platform
    A
    34mm
    -2.1~inches
    Vibration platform
    B
    45mm
    - 2.6inches
    Footprint
    C
    46mm
    ~ 2.6inches
    Footprint
    D
    293mm
    ~ 12.6inches
    Footprint
    D’
    50mm
    ~ 2.0inches
    Maximum height
    E
    140mm
    ~ 5.5inches
    Pick height
    F
    110mm
    ~ 4.4inches
