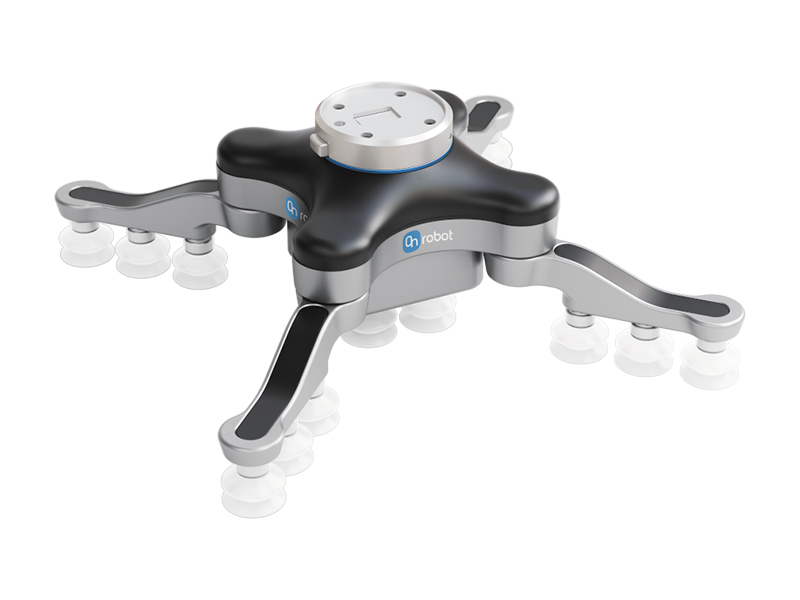

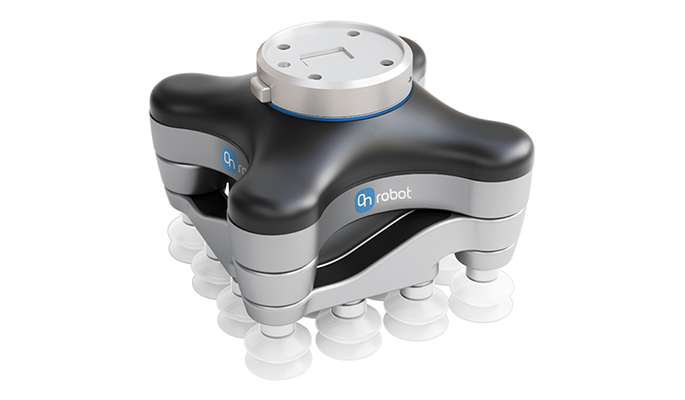

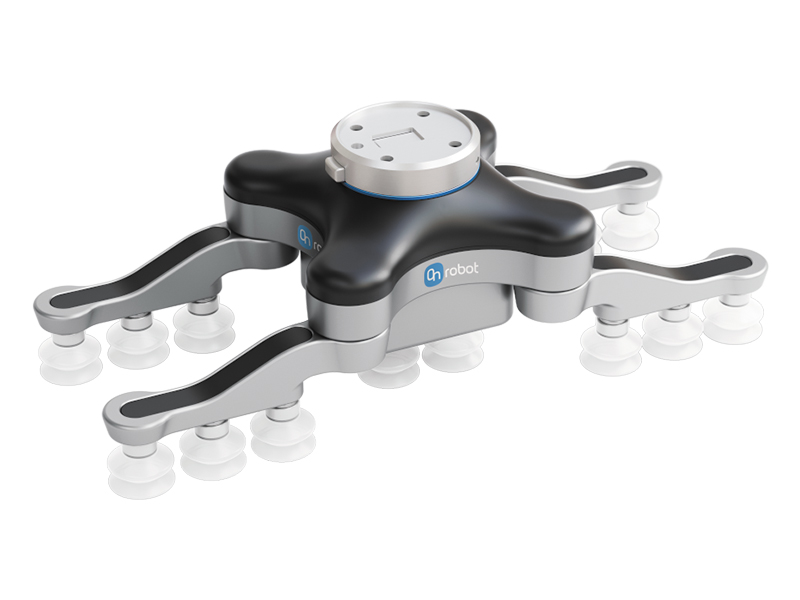

    VG10 VACUUM GRIPPER

    VG10 VACUUM GRIPPER DATASHEET




    • Easy installation, programming and risk assessment
    • Dual grip with two independent gripping zones
    • No need for external air or cables down the robot
    • 10 kg lifting power on airtight and slightly porous surfaces
    • Plug’n’Produce in 30 minutes (installation + robot programming)





    TECHNICALSPECIFICATIONS


    Technical data
    Value / Comments
    Technical data
    Min
    Typical
    Max
    Units
    Vacuum
    5 %
    -
    80 %
    [Vacuum]
    Vacuum
    -0.05
    -
    -0.810
    [Bar]
    Vacuum
    1.5
    -
    24
    [inHg]
    Air flow
    0
    -
    12
    [Nl/min]
    Power supply
    20.4
    24
    28.8
    [Volts]
    Current consumption*
    50
    600
    1500
    [mA]
    Operating temperature
    0
    -
    50
    [°C]
    Operating temperature
    32
    -
    122
    [°F]
    Gripping force accuracy
    ±2
    ±5
    ±10
    [N]
    Reach
    32
    -
    358
    [mm]
    Reach
    1.26
    -
    14.09
    [in]
    Adjustable arms
    0
    -
    270
    [°]
    Holding torque arms
    -
    6
    -
    [Nm]
    Payload
    0
    -
    10
    [kg]
    Payload
    0
    -
    22
    [lb]
    Vacuum cups
    1
    -
    16
    [pcs.]
    Gripping time
    -
    0.35
    -
    [s]
    Releasing time
    -
    0.20
    -
    [s]
    Foot-inch-foot
    -
    1.40
    -
    [s]

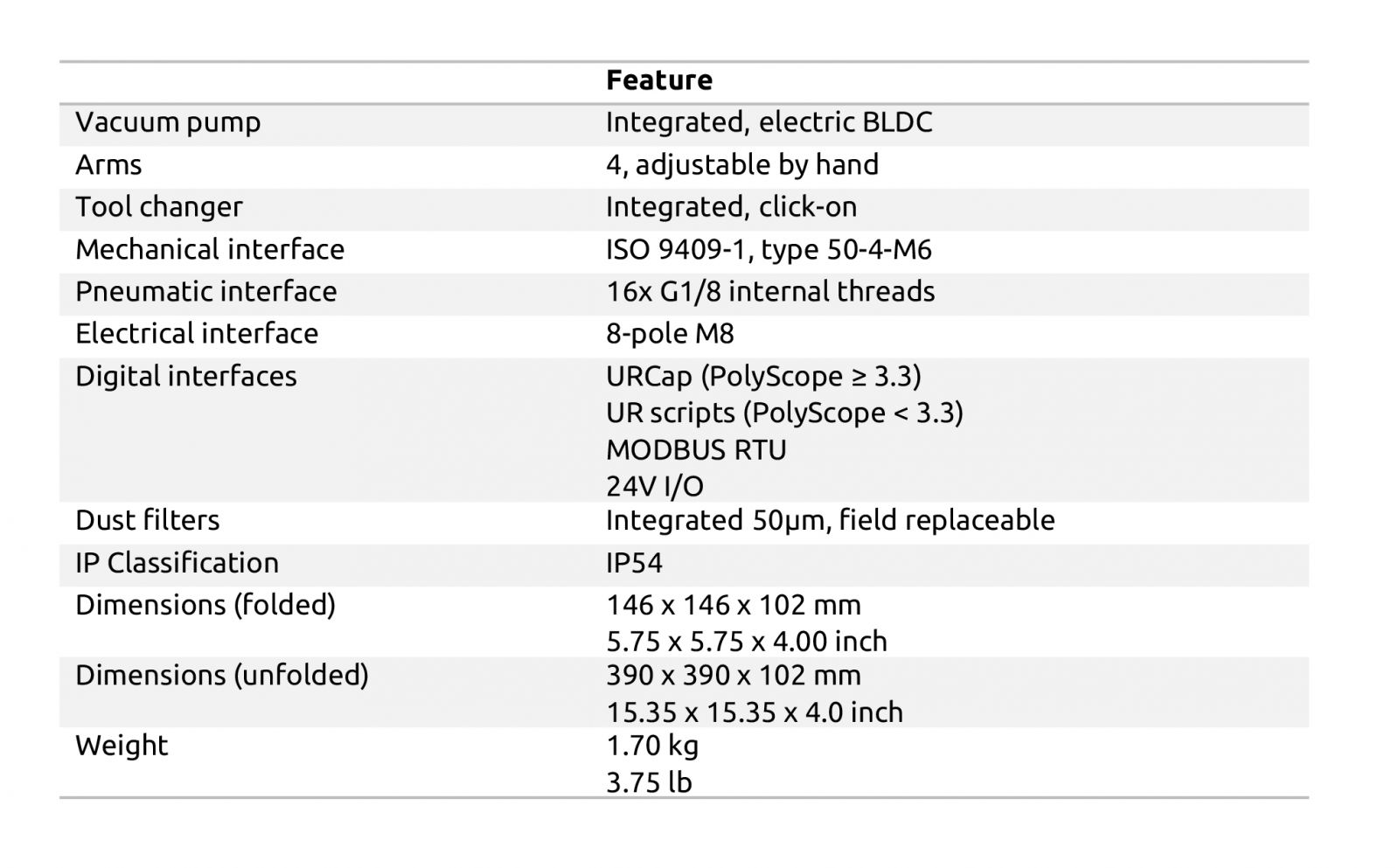

    FEATURES
