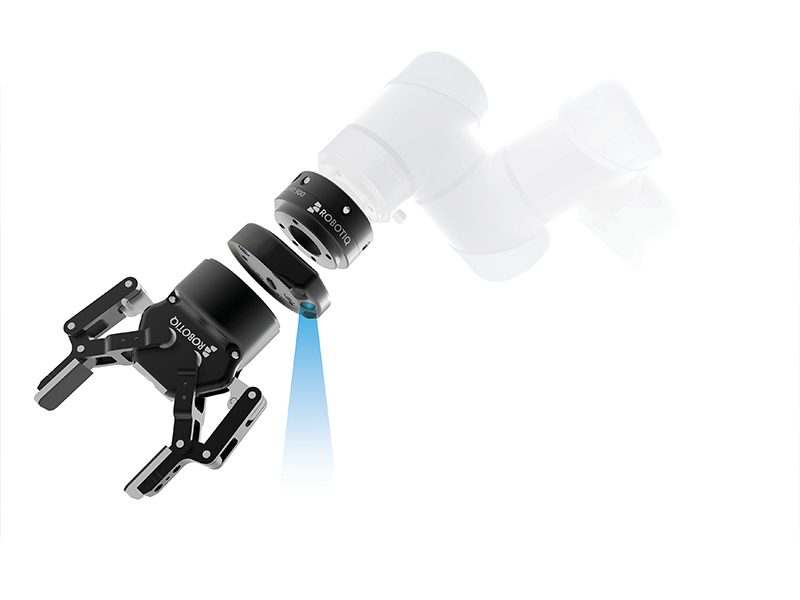

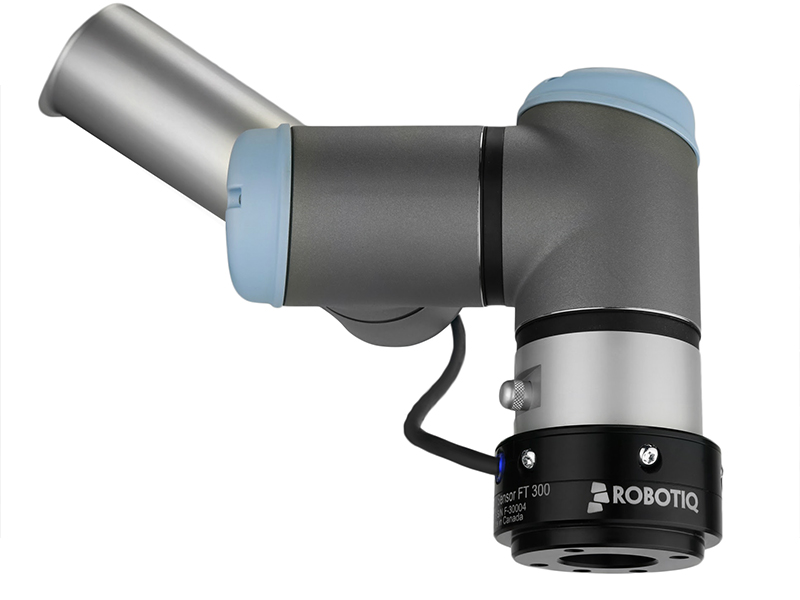

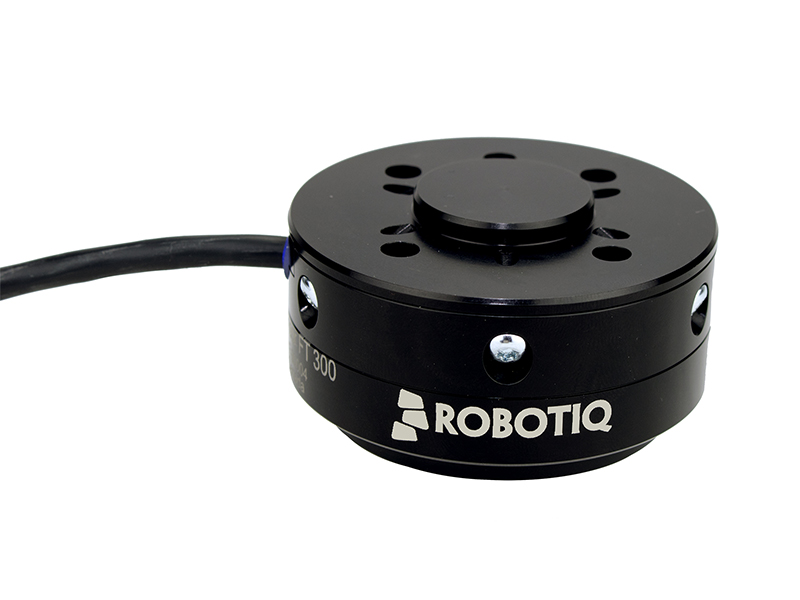

    FT 300 FORCE TORQUE SENSOR

    FT 300 FORCE TORQUE SENSOR




    • EASY TO USE
    • FORCE-SENSITIVE TASKS READY
    • FOR INDUSTRIAL NEEDS
    • PERFORM HIGH-PRECISION ASSEMBLY TASKS
    • TEACH YOUR ROBOT IN SECONDS





    TECHNICALSPECIFICATIONS


    Specification or Feature
    FX
    FY
    FZ
    Measuring range
    ± 300 N
    Overload capacity
    500%
    Signal noise
    0.1 N
    Recommended threshold for contact detection
    1 N
    Tool deflection at maximum measurable load
    0.01 mm
    External noise sensitivity
    Immune
    Data output rate (data stream mode)
    100 Hz
    Mass
    300 g
    Communication protocol
    Modbus RTU / Data stream (RS-485)
    Specification or Feature
    MX
    MY
    MZ
    Measuring range
    ± 30 Nm
    Overload capacity
    500%
    Signal noise
    0.005 Nm
    0.003 Nm
    Recommended threshold for contact detection
    0.02 Nm
    0.01 Nm
    Tool deflection at maximum measurable load
    0.17 deg
    0.09 deg
    External noise sensitivity
    Immune
    Data output rate (data stream mode)
    100 Hz
    Mass
    300 g
    Communication protocol
    Modbus RTU / Data stream (RS-485)
